Hi!
Im having WiFiVPN / CheckVPNConfig Errors - I've got NO IP Connectivity via the WLans - DNS Errors upon creation / deletion - I'm also unable to Ping Gateway... Please see all the details / screenshots below...
Please let me know if you need any details....
Help ;-)
===================================
"WifiVPN.sh wl1.1 1" Output
===================================
./WiFiVPN.sh wl1.1 1
(WiFiVPN.sh): 1835 v1.03b (Public Beta) © 2016-2017 Martineau, Guest WiFi VPN Bridge request.....[wl1.1 1]
(WiFiVPN.sh): 1835 WiFi 5GHz Guest 1 HollandTunnel requesting start of VPN Client 1 (NYC_VPN)
(WiFiVPN.sh): 1835 Waiting for VPN Client 1 (NYC_VPN) to connect.....
(WiFiVPN.sh): 1835 VPN Client 1 (NYC_VPN) connect'd in 10 secs
awkNR: /etc/openvpn/dns/client1.resolv: No such file or directory
awkNR: /etc/openvpn/dns/client1.resolv: No such file or directory
awkNR: /etc/openvpn/dns/client1.resolv: No such file or directory
(WiFiVPN.sh): 1835 WiFi (wl1.1) 5GHz Guest 1 HollandTunnel (192.168.101.0/24) routed through tunnel VPN Client 1 (NYC_VPN) using WAN DNS (1.1.1.1) via bridge:br1
----------
===================================
WifiVPN.sh Output
===================================
/jffs/scripts# ./WiFiVPN.sh diag
(WiFiVPN.sh): 6431 v1.03b (Public Beta) © 2016-2017 Martineau, WiFi VPN status request.....[diag]
WiFi->VPN Configuration Diagnostics for interfaces:
NVRAM lan_ifnames='vlan1 eth1 eth2 wl0.1
bridge name bridge id STP enabled interfaces
br0 8000.2c3033e93ef2 yes vlan1
eth1
eth2
wl0.1
br1 8000.e6f4c6000001 yes wl1.1
eth0.501
eth1.501
eth2.501
br2 8000.e6f4c6000006 no wl1.2
wl0.1 LongIslandCity 2.4GHz Guest 1
----- (NETGEAR_Guest2) 2.4GHz Guest 2 ** Disabled **
----- (NETGEAR_Guest3) 2.4GHz Guest 3 ** Disabled **
wl1.1 HollandTunnel 5GHz Guest 1 (192.168.101.0/24) routed through tunnel VPN Client 1 (***ERROR VPN is DOWN) using VPN DNS (*unknown*) via bridge:br1
br1 8000.e6f4c6000001 yes wl1.1
eth0.501
eth1.501
eth2.501
NVRAM lan1_ifname='br1'
NVRAM lan1_ifnames='eth0.501 wl1.1'
Delete this WiFi->VPN configuration? [ Type 'del' ] >
Show this WiFi VPN configuration? [ Y/N ] > y
Bridge config
=============
filter INPUT rule config
========================
7 0 0 ACCEPT icmp -- br1 * 0.0.0.0/0 0.0.0.0/0 icmptype 8 state NEW,RELATED,ESTABLISHED
8 0 0 ACCEPT udp -- br1 * 0.0.0.0/0 0.0.0.0/0 udp dpt:53
9 0 0 ACCEPT tcp -- br1 * 0.0.0.0/0 0.0.0.0/0 tcp dpt:53
10 10 3280 ACCEPT udp -- br1 * 0.0.0.0/0 0.0.0.0/0 udp dpts:67:68
11 107 23208 DROP all -- br1 * 0.0.0.0/0 0.0.0.0/0
26 13 4598 ACCEPT udp -- br1 * 0.0.0.0/0 0.0.0.0/0 udp dpt:67
27 0 0 ACCEPT udp -- br1 * 0.0.0.0/0 0.0.0.0/0 udp dpt:68
filter FORWARD rule config
==========================
9 0 0 ACCEPT all -- br0 br1 10.88.8.131 192.168.101.0/24
10 0 0 ACCEPT all -- br1 br0 192.168.101.0/24 10.88.8.131
11 0 0 ACCEPT tcp -- br0 br1 10.88.8.111 192.168.101.0/24 tcp dpt:22
12 0 0 ACCEPT all -- br1 tun11 0.0.0.0/0 0.0.0.0/0
13 0 0 ACCEPT all -- tun11 br1 0.0.0.0/0 0.0.0.0/0
14 0 0 DROP all -- br1 * 0.0.0.0/0 192.168.2.0/24
16 22 2638 ACCEPT all -- br1 ppp0 0.0.0.0/0 0.0.0.0/0
awkNR: /etc/openvpn/dns/client1.resolv: No such file or directory
nat DNSVPN1 rule config
=======================
1 0 0 RETURN all -- br1 * 192.168.101.0/24 0.0.0.0/0
nat POSTROUTING rule config
============================
3 23 4246 MASQUERADE all -- * tun11 192.168.101.0/24 0.0.0.0/0
Bridge br1 interface config
===========================
br1 8000.e6f4c6000001 yes wl1.1
eth0.501
eth1.501
eth2.501
Bridge br1 details
==================
br1
bridge id 8000.e6f4c6000001
designated root 8000.e6f4c6000001
root port 0 path cost 0
max age 20.00 bridge max age 20.00
hello time 2.00 bridge hello time 2.00
forward delay 15.00 bridge forward delay 15.00
ageing time 300.00
hello timer 1.85 tcn timer 0.00
topology change timer 0.00 gc timer 1.84
flags
wl1.1 (1)
port id 8001 state forwarding
designated root 8000.e6f4c6000001 path cost 100
designated bridge 8000.e6f4c6000001 message age timer 0.00
designated port 8001 forward delay timer 0.00
designated cost 0 hold timer 0.85
flags
eth0.501 (2)
port id 8002 state forwarding
designated root 8000.e6f4c6000001 path cost 100
designated bridge 8000.e6f4c6000001 message age timer 0.00
designated port 8002 forward delay timer 0.00
designated cost 0 hold timer 0.85
flags
eth1.501 (3)
port id 8003 state forwarding
designated root 8000.e6f4c6000001 path cost 100
designated bridge 8000.e6f4c6000001 message age timer 0.00
designated port 8003 forward delay timer 0.00
designated cost 0 hold timer 0.85
flags
eth2.501 (4)
port id 8004 state forwarding
designated root 8000.e6f4c6000001 path cost 100
designated bridge 8000.e6f4c6000001 message age timer 0.00
designated port 8004 forward delay timer 0.00
designated cost 0 hold timer 0.85
flags
VLAN Config
===========
1: vlan1: 1 2 3 4 5t
501: vlan501: 0t 1t 2t 3t 4t 5t
1045: vlan1045: 8t
1046: vlan1046: 0t 1 2 4 7
1047: vlan1047: 0 3t 5 7
1099: vlan1099: 0 3
1100: vlan1100: 0t 1t
1101: vlan1101: 0 1 3t 5t 7
1102: vlan1102: 0t 1 2 5 7t
1103: vlan1103: 2t 5 7

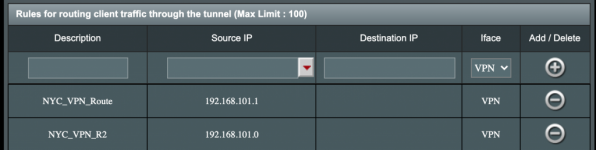

RPDB Rules
==========
0: from all lookup local
10101: from 192.168.101.1 lookup ovpnc1
10102: from 192.168.101.0 lookup ovpnc1
10301: from 192.168.102.1 lookup ovpnc2
10302: from 192.168.102.0 lookup ovpnc2
20100: from 192.168.101.0/24 lookup ovpnc1
20200: from 192.168.102.0/24 lookup ovpnc2
32766: from all lookup main
32767: from all lookup default
RPDB VPN Client 1 (NYC_VPN) routes
==================================
10.6.0.30 dev tun11 proto kernel scope link src 10.6.0.29
192.168.101.0/24 dev br1 scope link
192.168.2.0/24 dev br0 proto kernel scope link src 192.168.2.1
default via 10.6.0.30 dev tun11
Status: WiFi 5GHz Guest 1 (wl1.1) HollandTunnel (192.168.101.0/24) routed via VPN Client 1 (NYC_VPN) via bridge:br1
wl1.2 BattleSeaBridge 5GHz Guest 2 (192.168.102.0/24) routed through tunnel VPN Client 2 (***ERROR VPN is DOWN) using VPN DNS (*unknown*) via bridge:br2
br2 8000.e6f4c6000006 no wl1.2
NVRAM lan2_ifname='br2'
NVRAM lan2_ifnames='wl1.2'
Delete this WiFi->VPN configuration? [ Type 'del' ] >
Show this WiFi VPN configuration? [ Y/N ] > y
Bridge config
=============
filter INPUT rule config
========================
2 0 0 ACCEPT icmp -- br2 * 0.0.0.0/0 0.0.0.0/0 icmptype 8 state NEW,RELATED,ESTABLISHED
3 0 0 ACCEPT udp -- br2 * 0.0.0.0/0 0.0.0.0/0 udp dpt:53
4 0 0 ACCEPT tcp -- br2 * 0.0.0.0/0 0.0.0.0/0 tcp dpt:53
5 0 0 ACCEPT udp -- br2 * 0.0.0.0/0 0.0.0.0/0 udp dpts:67:68
6 3 310 DROP all -- br2 * 0.0.0.0/0 0.0.0.0/0
