AX88U Pro Optimal Antenna Positioning?

[barkmarkin]

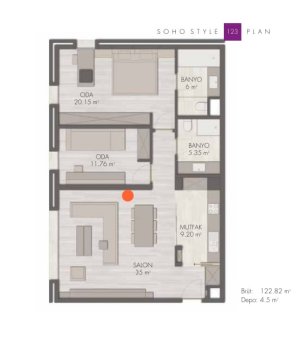

Hey this is gong to be very authistic for me but I have my AX88U Pro wall mounted at the center most position of the house right behind TV, I live in a 2 bedroom one story apartment. and I always kept the antennas vertical. I mostly use 5GHZ so any advice would be appreciated. Maybe I can angle the side antennas like in the last pictuıre? Sorry for stupid question.it is mounted up high as possible without being eye sore how should I position the antennas to get the best signal at every corner.

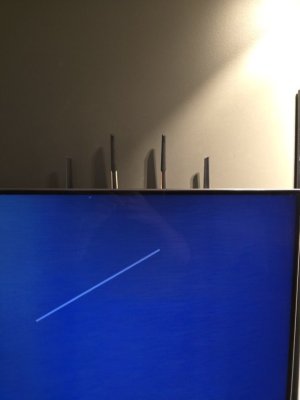

or should I do it like this?



[Tech9]

right behind TV

The worst place for a router. The TV itself is like a shield for Wi-Fi.

one story apartment

All antennas upright like this |_|_|_| is perhaps the best for an apartment.



[barkmarkin]

The worst place for a router. The TV itself is like a shield for Wi-Fi.



All antennas upright like this |_|_|_| is perhaps the best for an apartment.

I'll mount it a bit higher then but it's behind the router most of the house is so I doubt it'll make a difference most of the antennas are above the tv



[Tech9]

most of the antennas are above the tv

What you see above the TV is decorative plastic. The actual antenna inside is 5cm long. The antennas are low gain and almost omnidirectional.
