MOCA 2.5 Help Needed - Why Are my Speeds Slow in 1 Direction?

[degrub]

Which one of the PHY rate tables is current ?
i would replace the non moca splitter.



[airbusacft]

Which one of the PHY rate tables is current ?
i would replace the non moca splitter.

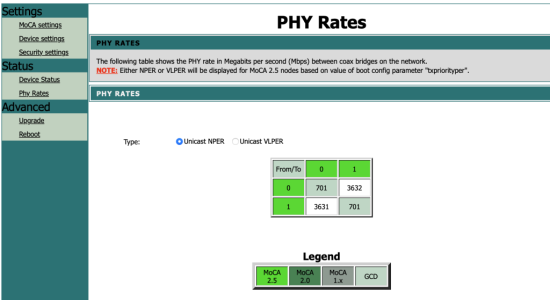

These are the PHY rates just before I replied to this post. I thought the docking station was part of the issue. I took my docking station down to the GFiber, plugged in the fiber router, and got 2.35G on both the download and upload speeds. So, something is passing through one of the MoCA adapters that is interfering with the download speed. Does it help to put a 2.5G/10G switch with PoE in between the GFiber router and 1st MoCA adapter and do the same thing by installing another 2.5G/10G switch with PoE between the 2nd MoCA adapter and docking station?



[degrub]

The only suggestion at this point that i have is change to a star layout for moca if you can. What that means is each cable segment has a pair of moca modems on it. Each segment is linked to the others through an ethernet switch rather than a moca splitter.
To test the idea, isolate the segment going to your mac using the pair of screambeam modems. and have ethernet to mac and ethernet to your router lan port. Check the speeds you get.
