[Open Issue] Bug in OpenVPN subnet configuration

[dineshgyl]

Firmware Version:3.0.0.6.102_34336
RT-AX86U Pro

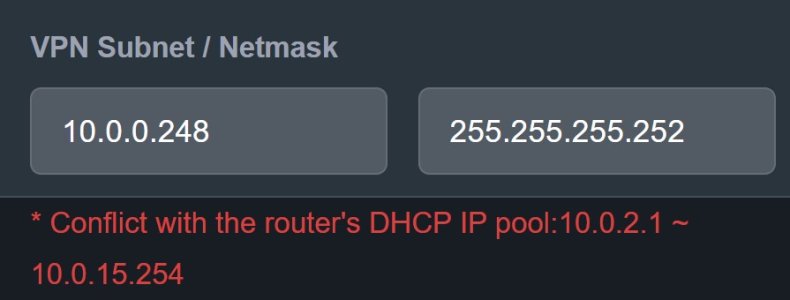

Even though the DHCP Pool range and VPN subnet does not overlap the UI still shows an error and does not accept the value.



[ColinTaylor]

My guess is that it should really say "Conflicts with the router's LAN subnet". Which would be true if your LAN subnet is 10.0.0.0/20, as implied by your DHCP pool range.



[dineshgyl]

So a VPN subnet cannot share the LAN subnet? Sorry I am not that pro in networking.



[ColinTaylor]

So a VPN subnet cannot share the LAN subnet? Sorry I am not that pro in networking.

No, not with a TUN (routed) connection. You can with a TAP (bridged) connection but that's typically only used in very specific circumstances, e.g. linking two business sites together.



[dave14305]

It looks like it is only comparing the first 3 octets of the router LAN IP with the first 3 octets of the VPN server subnet. What’s the router LAN IP?



[ColinTaylor]

It looks like it is only comparing the first 3 octets of the router LAN IP with the first 3 octets of the VPN server subnet. What’s the router LAN IP?

Mouseover the firmware version in post #1 to see it's 10.0.0.1.
