Unbound unbound_manager (Manager/Installer utility for unbound - Recursive DNS Server) - General questions / discussion thread 2

chongnt · Mar 28, 2022

Andrew-E said:
Hi!
How to make sure that the cache (and statistics) are saved when the router is rebooted?
Thanks!
View attachment 40416

you may refer to this post: https://www.snbforums.com/threads/u...estions-discussion-thread-2.67968/post-738901

the idea is to dump cache every minute. In the event of reboot, only cache file less than 10 min old will be restored.

Skywise · Apr 8, 2022

Skywise said:
Did a search but nothing turned up - when enabling the adblocking on unbound, is there a way to allow a specific IP to bypass the blocklist? (EG, I've got a computer that needs access to some ad servers). I'm thinking it could be done with views but my attempts so far have all been futile.

Replying to myself here for the solution:
If you assign an IP to your clients you can specify DNS handling per client IP under Advanced Settings | LAN | DNSFilter tab.
Select the client's IP and specify "Router" to continue filtering through Unbound and its ad manager or specify another DNS group/preset in the drop down. (I select Quad9 for mine when i need to bypass ad-blocking and then re-set it for Router when I'm done)

Andrew-E · Apr 9, 2022

How (by what command) can I change the standard ad blocking list to this one (default filter of AdGuard Home)?
(and so that it is then updated automatically)
Thanks!

Rippo · Apr 9, 2022

Andrew-E said:
How (by what command) can I change the standard ad blocking list to this one (default filter of AdGuard Home)?
(and so that it is then updated automatically)
Thanks!

Try:
unbound_manager advanced
3 [for option 3 advanced tools]
ecb [for edit config blocklist]

Martineau · Apr 9, 2022

Andrew-E said:
Can I change the standard ad blocking list to this one (default filter of AdGuard Home)?

No

IIRC, the file (as-is) is most likely not compatible, but you could convert it first (locally) then probably use it depending on its size/number of entries.

Milan · Apr 12, 2022

Hi,

not sure if someone has similar issue - unbound is not logging query messages after some time, only script messages are in the log.
Restart will fix it always.

How to fix this ?

Martineau · Apr 12, 2022

Milan said:
not sure if someone has similar issue - unbound is not logging query messages after some time, only script messages are in the log.
Restart will fix it always.

When the logging stops, does unbound still continue to resolve ?

Are you using the default logging.....

Code:

e  = Exit Script [?]

A:Option ==> lo

unbound logging (Loglevel=1) ENABLED

/opt/var/lib/unbound/unbound.log (Loglevel=1)        Press CTRL-C to stop

Apr 12 10:32:54 unbound[4975:0] query: 127.0.0.1 www.google.com. AAAA IN
Apr 12 10:32:54 unbound[4975:0] reply: 127.0.0.1 www.google.com. AAAA IN NOERROR 0.000000 1 32
Apr 12 10:32:55 unbound[4975:0] query: 127.0.0.1 amcrestview.com. A IN
Apr 12 10:32:55 unbound[4975:0] reply: 127.0.0.1 amcrestview.com. A IN NOERROR 0.000000 1 49
Apr 12 10:32:57 unbound[4975:0] query: 127.0.0.1 config.amcrestcloud.com. A IN
Apr 12 10:32:57 unbound[4975:0] reply: 127.0.0.1 config.amcrestcloud.com. A IN NOERROR 0.000000 1 73
Apr 12 10:32:57 unbound[4975:0] query: 127.0.0.1 www.google.com. AAAA IN
Apr 12 10:32:57 unbound[4975:0] reply: 127.0.0.1 www.google.com. AAAA IN NOERROR 0.000000 1 32
Apr 12 10:32:57 unbound[4975:0] query: 127.0.0.1 www.google.com. A IN
Apr 12 10:32:57 unbound[4975:0] reply: 127.0.0.1 www.google.com. A IN NOERROR 0.000000 1 48
Apr 12 10:33:02 unbound[4975:0] query: 127.0.0.1 www.google.com. AAAA IN
Apr 12 10:33:02 unbound[4975:0] reply: 127.0.0.1 www.google.com. AAAA IN NOERROR 0.000000 1 32
Apr 12 10:33:02 unbound[4975:0] query: 127.0.0.1 www.google.com. A IN
Apr 12 10:33:02 unbound[4975:0] reply: 127.0.0.1 www.google.com. A IN NOERROR 0.000000 1 48

or have you invoked the scribe menu option (syslog-ng)

Code:

e  = Exit Script [?]

A:Option ==> scribe

10:33:34 Checking 'unbound.conf' etc. for valid Syntax.....

    Non-Fatal:  unbound-checkconf[13773:0] warning: duplicate local-zone hottestpornactress.com. unbound-checkconf[13773:0] warning: duplicate local-zone freenudwebcam.com. unbound-checkconf[13773:0] warning: duplicate local-zone email.40iq.com. unbound-checkconf[13773:0] warning: duplicate local-zone beststreamingporn.com. unbound-checkconf[13773:0] warning: duplicate local-zone 76gmail.com. - no errors in /opt/var/lib/unbound/unbound.conf

10:34:02 Saving unbound cache to '/opt/share/unbound/configs/cache.txt' msg.cache=15530/357 rrset.cache=23449/1571
10:34:02 Requesting unbound (S61unbound) restart.....
 Shutting down unbound...              done.
 Starting unbound...              done.
10:34:16 Checking status, please wait.....
10:34:57 Restoring unbound cache from '/opt/share/unbound/configs/cache.txt' (2022-04-12 10:33:56) msg.cache=1/357 rrset.cache=346/1571
10:35:03 unbound OK

Created scribe 'unbound' file: Enabling syslog-ng logging (scribe).....10:35:04 Checking 'unbound.conf' etc. for valid Syntax.....


e  = Exit Script [?]

A:Option ==> lo

unbound logging (Loglevel=1) ENABLED

/opt/var/lib/unbound/unbound.log (Loglevel=1)        Press CTRL-C to stop

Apr 12 10:35:38 unbound[15273:0] info: histogram of recursion processing times
Apr 12 10:35:38 unbound[15273:0] info: [25%]=0.0946631 median[50%]=0.262144 [75%]=0.405132
Apr 12 10:35:38 unbound[15273:0] info: lower(secs) upper(secs) recursions
Apr 12 10:35:38 unbound[15273:0] info:    0.008192    0.016384 1
Apr 12 10:35:38 unbound[15273:0] info:    0.016384    0.032768 1
Apr 12 10:35:38 unbound[15273:0] info:    0.065536    0.131072 9
Apr 12 10:35:38 unbound[15273:0] info:    0.131072    0.262144 1
Apr 12 10:35:38 unbound[15273:0] info:    0.262144    0.524288 11
Apr 12 10:35:38 unbound[15273:0] info:    0.524288    1.000000 1
Apr 12 12:55:19 unbound_manager: 'lo':  =================================================================================== Started Loglevel=1

Milan · Apr 12, 2022

Martineau said:

When the logging stops, does unbound still continue to resolve ?

Are you using the default logging.....

Code:

e  = Exit Script [?]

A:Option ==> lo

unbound logging (Loglevel=1) ENABLED

/opt/var/lib/unbound/unbound.log (Loglevel=1)        Press CTRL-C to stop

Apr 12 10:32:54 unbound[4975:0] query: 127.0.0.1 www.google.com. AAAA IN
Apr 12 10:32:54 unbound[4975:0] reply: 127.0.0.1 www.google.com. AAAA IN NOERROR 0.000000 1 32
Apr 12 10:32:55 unbound[4975:0] query: 127.0.0.1 amcrestview.com. A IN
Apr 12 10:32:55 unbound[4975:0] reply: 127.0.0.1 amcrestview.com. A IN NOERROR 0.000000 1 49
Apr 12 10:32:57 unbound[4975:0] query: 127.0.0.1 config.amcrestcloud.com. A IN
Apr 12 10:32:57 unbound[4975:0] reply: 127.0.0.1 config.amcrestcloud.com. A IN NOERROR 0.000000 1 73
Apr 12 10:32:57 unbound[4975:0] query: 127.0.0.1 www.google.com. AAAA IN
Apr 12 10:32:57 unbound[4975:0] reply: 127.0.0.1 www.google.com. AAAA IN NOERROR 0.000000 1 32
Apr 12 10:32:57 unbound[4975:0] query: 127.0.0.1 www.google.com. A IN
Apr 12 10:32:57 unbound[4975:0] reply: 127.0.0.1 www.google.com. A IN NOERROR 0.000000 1 48
Apr 12 10:33:02 unbound[4975:0] query: 127.0.0.1 www.google.com. AAAA IN
Apr 12 10:33:02 unbound[4975:0] reply: 127.0.0.1 www.google.com. AAAA IN NOERROR 0.000000 1 32
Apr 12 10:33:02 unbound[4975:0] query: 127.0.0.1 www.google.com. A IN
Apr 12 10:33:02 unbound[4975:0] reply: 127.0.0.1 www.google.com. A IN NOERROR 0.000000 1 48

or have you invoked the scribe menu option (syslog-ng)

Code:

e  = Exit Script [?]

A:Option ==> scribe

10:33:34 Checking 'unbound.conf' etc. for valid Syntax.....

    Non-Fatal:  unbound-checkconf[13773:0] warning: duplicate local-zone hottestpornactress.com. unbound-checkconf[13773:0] warning: duplicate local-zone freenudwebcam.com. unbound-checkconf[13773:0] warning: duplicate local-zone email.40iq.com. unbound-checkconf[13773:0] warning: duplicate local-zone beststreamingporn.com. unbound-checkconf[13773:0] warning: duplicate local-zone 76gmail.com. - no errors in /opt/var/lib/unbound/unbound.conf

10:34:02 Saving unbound cache to '/opt/share/unbound/configs/cache.txt' msg.cache=15530/357 rrset.cache=23449/1571
10:34:02 Requesting unbound (S61unbound) restart.....
Shutting down unbound...              done.
Starting unbound...              done.
10:34:16 Checking status, please wait.....
10:34:57 Restoring unbound cache from '/opt/share/unbound/configs/cache.txt' (2022-04-12 10:33:56) msg.cache=1/357 rrset.cache=346/1571
10:35:03 unbound OK

Created scribe 'unbound' file: Enabling syslog-ng logging (scribe).....10:35:04 Checking 'unbound.conf' etc. for valid Syntax.....


e  = Exit Script [?]

A:Option ==> lo

unbound logging (Loglevel=1) ENABLED

/opt/var/lib/unbound/unbound.log (Loglevel=1)        Press CTRL-C to stop

Apr 12 10:35:38 unbound[15273:0] info: histogram of recursion processing times
Apr 12 10:35:38 unbound[15273:0] info: [25%]=0.0946631 median[50%]=0.262144 [75%]=0.405132
Apr 12 10:35:38 unbound[15273:0] info: lower(secs) upper(secs) recursions
Apr 12 10:35:38 unbound[15273:0] info:    0.008192    0.016384 1
Apr 12 10:35:38 unbound[15273:0] info:    0.016384    0.032768 1
Apr 12 10:35:38 unbound[15273:0] info:    0.065536    0.131072 9
Apr 12 10:35:38 unbound[15273:0] info:    0.131072    0.262144 1
Apr 12 10:35:38 unbound[15273:0] info:    0.262144    0.524288 11
Apr 12 10:35:38 unbound[15273:0] info:    0.524288    1.000000 1
Apr 12 12:55:19 unbound_manager: 'lo':  =================================================================================== Started Loglevel=1

using scribe and unbound is still resolving.
only logging is stoped.

JGrana · Apr 12, 2022

Milan said:
using scribe and unbound is still resolving.
only logging is stoped.

On both my AX88U and AX86 running unbound_manager 3.22, scribe is showing the logs.

Martineau · Apr 13, 2022

Milan said:
using scribe and unbound is still resolving.
only logging is stoped.

If you restart scribe/syslog-ng, does the logging start to work?
I've noticed that occasionally, my SSH terminal session running

Code:

[ -n "$(ps | grep -v grep | grep -F "syslog-ng")" ] && { echo Syslog-ng; tail -F /opt/var/log/messages; } || { echo Syslog; tail -F /tmp/syslog.log; }

will stall - although it could be tail -F losing the location of the file with some message about it being relocated or something?..... due to logrotate?)

Perhaps you could try manually forcing unbound to dump/write data to its log file to see if they are perhaps being dropped when using scribe/syslog-ng?

What is the size of the log when it is found to have stopped?

Alternatively don't log unbound to scribe/syslog-ng to eliminate them as possible suspects, to see if you still lose logging.

IMHO, if unbound is working, then is constant logging really necessary/required?
(NL Labs state that it does impact performance, and is only truly useful to assist with diagnosing an issue.)

Domeus · Apr 13, 2022

Martineau said:
The 'feature' has been available since v2.02?, but most aren't obsessed/fixated with cache....hence no auto-schedule

Ensure you are running in Advanced Menu mode; then check that auto-restore @boot is ENABLED

Code:

e = Exit Script [?] A:Option ==> dumpcache bootrest 07:56:55 Saving unbound cache to '/opt/share/unbound/configs/cache.txt' msg.cache=8006/356 rrset.cache=14122/1639 NOTE: unbound cache will be automatically RESTORED on REBOOT (see /jffs/scripts/post-mount)

'/jffs/scripts/post-mount'

Code:

# If unbound UP, reload the cache if file is less than 10 mins old - requires Entware's '/opt/bin/find' FN="/opt/share/unbound/configs/cache.txt";if [ -n "$(pidof unbound)" ] && [ -s $FN ] && [ -n "$(/opt/bin/find $FN -type f -mmin -10)" ];then TIMESTAMP=$(date -r $FN "+%Y-%m-%d %H:%M:%S");unbound-control load_cache < $FN; rm $FN; logger -st "($(basename $0))" "unbound cache RESTORED from '$FN'" $TIMESTAMP;fi # unbound_manager

Now manually schedule the cache save (obviously you should really check to see if unbound is UP before attempting the save!)

Code:

cru a unbound_cache "*/1 * * * *" "unbound-control dump_cache > /opt/share/unbound/configs/cache.txt"

Code:

cru l */1 * * * * unbound-control dump_cache > /opt/share/unbound/configs/cache.txt #unbound_cache#

Check cron is dumping the cache to the file on schedule ...

Code:

watch ls -l /opt/share/unbound/configs/cache.txt

It works, but somehow it wont work after reboot. Cron job disappears after reboot. Any tips?

BEFORE:

AFTER REBOOT:

dave14305 · Apr 13, 2022

Entware updates are imminent, including Unbound 1.15. Do yourselves a favor, and stop Unbound before upgrading Entware packages. Otherwise, there will be many posts complaining Unbound is broken after updating, etc.

chongnt · Apr 14, 2022

Domeus said:
It works, but somehow it wont work after reboot. Cron job disappears after reboot. Any tips?

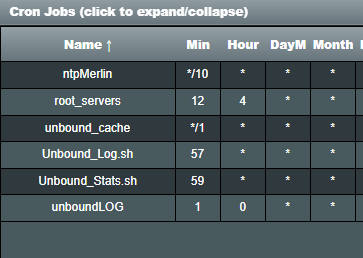

BEFORE:

View attachment 40801

AFTER REBOOT:

View attachment 40799
View attachment 40800

Can you check if the code are still there in /jffs/scripts/post-mount? If not you can manually add it back. It should survive a reboot.

JGrana · Apr 14, 2022

dave14305 said:
Entware updates are imminent, including Unbound 1.15. Do yourselves a favor, and stop Unbound before upgrading Entware packages. Otherwise, there will be many posts complaining Unbound is broken after updating, etc.

Indeed. I did unbound_manager #3 (stop Unbound).
opkg update && opkg upgrade.
Ran scmerlin - reboot

Unbound wont start…
Time for some debugging…

JGrana · Apr 14, 2022

Unbound running again. The Entware update replaces the /opt/etc/init.d/S61unbound that unbound_manager creates with the standard file (and incorrect for use with unbound_mananger).
So, before doing the opkg upgrade, make a backup of your /opt/etc/init.d/S61unbound file and replace it after the upgrade.
Ubound still wont start - the upgrade changes the permissions in /opt/var/lib/unbound.
I did a chown -R nobody:nobody /opt/var/lib/unbound
Unbound and unbound_manager are now happy
(From what I can tell)

Ubimo · Apr 14, 2022

Hopefully @Martineau is able to adress this situation? Please?

ugandy · Apr 14, 2022

this is what i do everytime there is an entware update:
uninstall unbound&ntpMerlin->updated entware -> install ntpMerlin&unbound

SomeWhereOverTheRainBow · Apr 14, 2022

JGrana said:
Unbound running again. The Entware update replaces the /opt/etc/init.d/S61unbound that unbound_manager creates with the standard file (and incorrect for use with unbound_mananger).
So, before doing the opkg upgrade, make a backup of your /opt/etc/init.d/S61unbound file and replace it after the upgrade.
Ubound still wont start - the upgrade changes the permissions in /opt/var/lib/unbound.
I did a chown -R nobody:nobody /opt/var/lib/unbound
Unbound and unbound_manager are now happy
(From what I can tell)

Ubimo said:
Hopefully @Martineau is able to adress this situation? Please?

ugandy said:
this is what i do everytime there is an entware update:
uninstall unbound&ntpMerlin->updated entware -> install ntpMelin&unbound

You mean to tell me that unbound-manager does not have away to automate this update process where the permissions and init.d files are preserved/restored?

Stephen Harrington · Apr 14, 2022

ugandy said:
uninstall unbound&ntpMerlin->updated entware -> install ntpMerlin&unbound

Slightly Off-Topic but curious @ugandy about the need for ntpMerlin uninstall/reinstall - where does that factor into the mix / and or what gets overwritten by the entware updates please?

SomeWhereOverTheRainBow · Apr 14, 2022

Stephen Harrington said:
Slightly Off-Topic but curious about the need for ntpMerlin uninstall/reinstall - where does that factor into the mix / and or what gets overwritten by the entware updates please?

For what I know, ntpmerlin has a built in update automation process. you just have to run the menu and possibly the uf option.

Thread starter	Title	Forum	Replies	Date
	Unbound Force all DNS requests through Unbound using iptables?	Asuswrt-Merlin AddOns	14	Oct 27, 2024
Z	Unbound Unbound + AdGuard Settings	Asuswrt-Merlin AddOns	1	Oct 19, 2024
Z	Unbound Unbound on subnet router	Asuswrt-Merlin AddOns	3	Oct 4, 2024
B	Unbound Does unbound update automatically?	Asuswrt-Merlin AddOns	8	Sep 8, 2024
F	Unbound Unbound stopped working	Asuswrt-Merlin AddOns	3	Sep 7, 2024
B	Unbound Unbound whitelist	Asuswrt-Merlin AddOns	15	Aug 30, 2024
	Is it possible to use nord dns with unbound or any way to add it?	Asuswrt-Merlin AddOns	9	Jul 21, 2024
	Guide to using vpn with unbound dns?	Asuswrt-Merlin AddOns	3	Jul 16, 2024
B	Unbound Use unbound/router as default DNS server	Asuswrt-Merlin AddOns	2	Jul 12, 2024
B	Unbound Test unbound	Asuswrt-Merlin AddOns	6	Jul 6, 2024

Unbound unbound_manager (Manager/Installer utility for unbound - Recursive DNS Server) - General questions / discussion thread 2

Very Senior Member

Occasional Visitor

New Around Here

Occasional Visitor

Part of the Furniture

Senior Member

Part of the Furniture

Senior Member

Very Senior Member

Part of the Furniture

New Around Here

Part of the Furniture

Very Senior Member

Very Senior Member

Very Senior Member

Very Senior Member

Very Senior Member

Part of the Furniture

Very Senior Member

Part of the Furniture

Similar threads

Similar threads

Support SNBForums w/ Amazon

Sign Up For SNBForums Daily Digest
